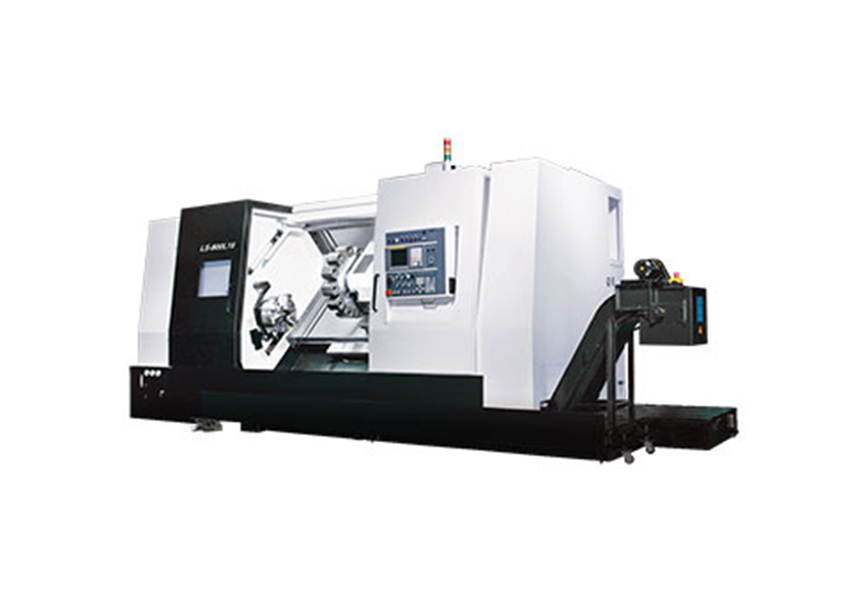

LS-800C
LS-800C
| LS-800CL10 | LS-800CL15 | LS-800CL20 | LS-800CL30 | |
|---|---|---|---|---|
| Max swing (mm) | 830 | 830 | 830 | 830 |
| Max turning diameter (mm) | 760 | 760 | 760 | 760 |
| Max tuning length (mm) | 1050 | 1550 | 1950 | 2950 |
| Bar capacity (mm) | 180 | 180 | 180 | 180 |
| Spindle speed (rpm) | 1200 | 1200 | 1200 | 1200 |
| Chuck size (inch) | 20" | 20" | 20" | 20" |
| Number of head stock | 1 | 1 | 1 | 1 |
| Number of tools | T10(T12) | T10(T12) | T10(T12) | T10(T12) |
| Milling turret (Y/N) | ||||
| Y axis (Y/N) |
| LS-800CL10 | LS-800CL15 | LS-800CL20 | LS-800CL30 | |
|---|---|---|---|---|
| Max swing (mm) | 32.6 | 32.6 | 32.6 | 32.6 |
| Max turning diameter (mm) | 29.9 | 29.9 | 29.9 | 29.9 |
| Max tuning length (mm) | 41.3 | 60.9 | 76.6 | 115.9 |
| Bar capacity (mm) | 7.1 | 7.1 | 7.1 | 7.1 |
| Spindle speed (rpm) | 1200 | 1200 | 1200 | 1200 |
| Chuck size (inch) | 20" | 20" | 20" | 20" |
| Number of head stock | 1 | 1 | 1 | 1 |
| Number of tools | T10(T12) | T10(T12) | T10(T12) | T10(T1 |
| Milling turret (Y/N) | ||||
| Y axis (Y/N) |
| LS-800CL10 | LS-800CL15 | LS-800CL20 | LS-800CL30 | |
|---|---|---|---|---|
| Max swing (mm) | 830 | 830 | 830 | 830 |
| Max turning diameter (mm) | 760 | 760 | 760 | 760 |
| Max tuning length (mm) | 1050 | 1550 | 1950 | 2950 |
| Bar capacity (mm) | 180 | 180 | 180 | 180 |
| Spindle speed (rpm) | 1200 | 1200 | 1200 | 1200 |
| Chuck size (inch) | 20" | 20" | 20" | 20" |
| Number of head stock | 1 | 1 | 1 | 1 |
| Number of tools | T10(T12) | T10(T12) | T10(T12) | T10(T12) |
| Milling turret (Y/N) | ||||
| Y axis (Y/N) |
