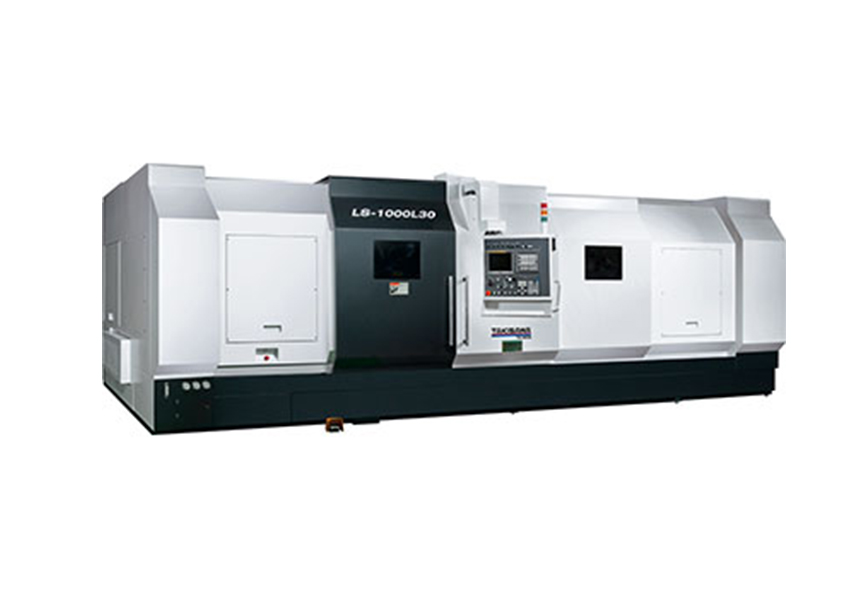

LS-1000
LS-1000
| LS-1000L10 | LS-1000L15 | LS-1000L20 | LS-1000L30 | |
|---|---|---|---|---|
| Max swing (mm) | 1020 | 1020 | 1020 | 1020 |
| Max turning diameter (mm) | 900 | 900 | 900 | 900 |
| Max tuning length (mm) | 1031 | 1531 | 2131 | 3131 |
| Bar capacity (mm) | 180 | 180 | 180 | 180 |
| Spindle speed (rpm) | 1200(1000) | 1200(1000) | 1200(1000) | 1200(1000) |
| Chuck size (inch) | 20"(24") | 20"(24") | 20"(24") | 20"(24") |
| Number of head stock | 1 | 1 | 1 | 1 |
| Number of tools | T8(T10) | T8(T10) | T8(T10) | T8(T10) |
| Milling turret (Y/N) | ||||
| Y axis (Y/N) |
| LS-1000L10 | LS-1000L15 | LS-1000L20 | LS-1000L30 | |
|---|---|---|---|---|
| Max swing (mm) | 40.1 | 40.1 | 40.1 | 40.1 |
| Max turning diameter (mm) | 35.4 | 35.4 | 35.4 | 35.4 |
| Max tuning length (mm) | 40.5 | 60.2 | 83.7 | 123 |
| Bar capacity (mm) | 7.1 | 7.1 | 7.1 | 7.1 |
| Spindle speed (rpm) | 1200(1000) | 1200(1000) | 1200(1000) | 1200(1000) |
| Chuck size (inch) | 20"(24") | 20"(24") | 20"(24") | 20"(24") |
| Number of head stock | 1 | 1 | 1 | 1 |
| Number of tools | T8(T10) | T8(T10) | T8(T10) | T8(T10) |
| Milling turret (Y/N) | ||||
| Y axis (Y/N) |
| LS-1000L10 | LS-1000L15 | LS-1000L20 | LS-1000L30 | |
|---|---|---|---|---|
| Max swing (mm) | 1020 | 1020 | 1020 | 1020 |
| Max turning diameter (mm) | 900 | 900 | 900 | 900 |
| Max tuning length (mm) | 1031 | 1531 | 2131 | 3131 |
| Bar capacity (mm) | 180 | 180 | 180 | 180 |
| Spindle speed (rpm) | 1200(1000) | 1200(1000) | 1200(1000) | 1200(1000) |
| Chuck size (inch) | 20"(24") | 20"(24") | 20"(24") | 20"(24") |
| Number of head stock | 1 | 1 | 1 | 1 |
| Number of tools | T8(T10) | T8(T10) | T8(T10) | T8(T10) |
| Milling turret (Y/N) | ||||
| Y axis (Y/N) |
