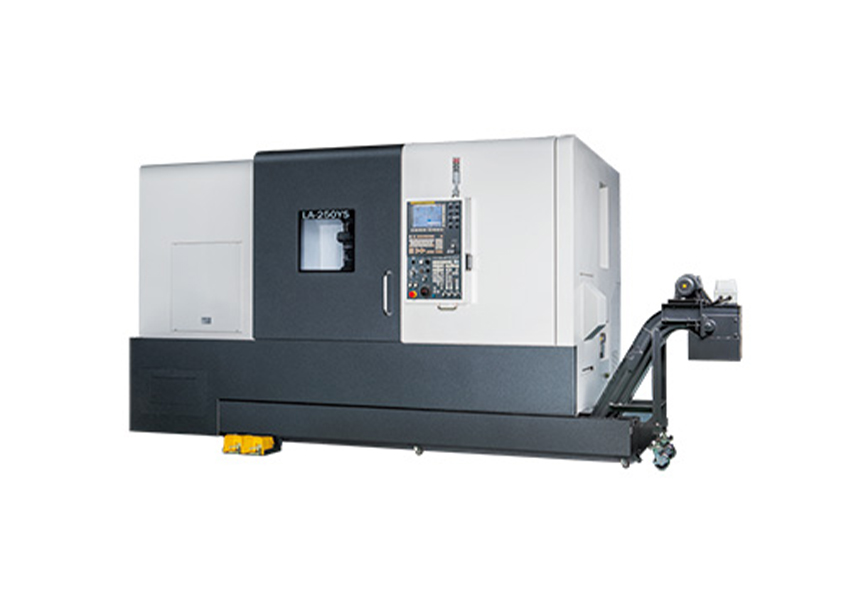

LA-250YS
LA-250YS
| LA-250YS | Metric Units | US Standard |
|---|---|---|
| Max swing (mm) | 600 | 23.6 |
| Max turning diameter (mm) | 370 | 14.5 |
| Max tuning length (mm) | 737 | 29 |
| Bar capacity (mm) | 75/52 | 2.9/2 |
| Spindle speed (rpm) | 3500 | 3500 |
| Chuck size (inch) | 10" | 10" |
| Number of head stock | 2 | 2 |
| Number of tools | T12/T15 | T12/T15 |
| Milling turret (Y/N) | Y | Y |
| Y axis (Y/N) | Y | Y |
| LA-250YS | Metric Units | US Standard |
|---|---|---|
| Max swing (mm) | 600 | 23.6 |
| Max turning diameter (mm) | 370 | 14.5 |
| Max tuning length (mm) | 737 | 29 |
| Bar capacity (mm) | 75/52 | 2.9/2 |
| Spindle speed (rpm) | 3500 | 3500 |
| Chuck size (inch) | 10" | 10" |
| Number of head stock | 2 | 2 |
| Number of tools | T12/T15 | T12/T15 |
| Milling turret (Y/N) | Y | Y |
| Y axis (Y/N) | Y | Y |
