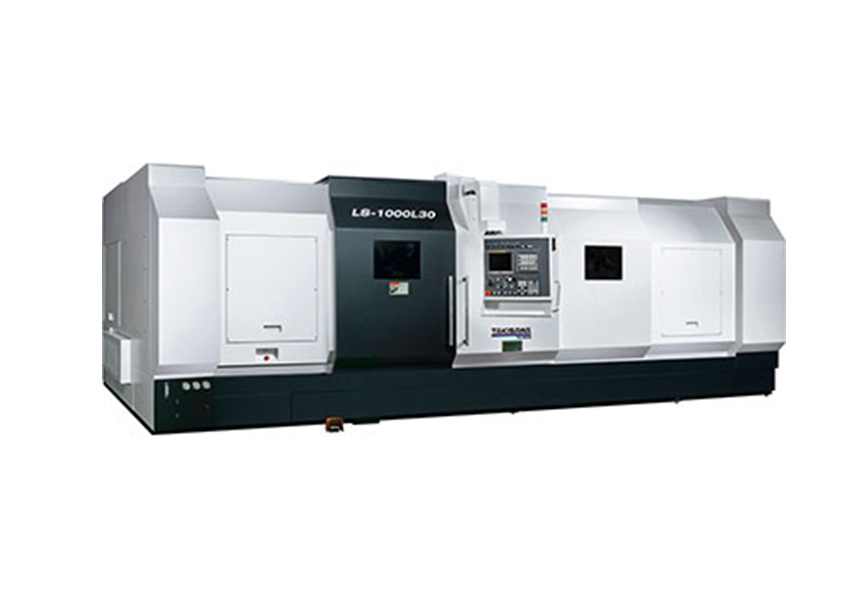

LS-1000M
LS-1000M
| LS-1000ML10 | LS-1000ML15 | LS-1000ML20 | LS-1000ML30 | |
|---|---|---|---|---|
| Max swing (mm) | 1020 | 1020 | 1020 | 1020 |
| Max turning diameter (mm) | 850 | 850 | 850 | 850 |
| Max tuning length (mm) | 970 | 1470 | 1970 | 2970 |
| Bar capacity (mm) | 180 | 180 | 180 | 180 |
| Spindle speed (rpm) | 1200(1000) | 1200(1000) | 1200(1000) | 1200(1000) |
| Chuck size (inch) | 20"(24") | 20"(24") | 20"(24") | 20"(24") |
| Number of head stock | 1 | 1 | 1 | 1 |
| Number of tools | T12 | T12 | T12 | T12 |
| Milling turret (Y/N) | Y | Y | Y | Y |
| Y axis (Y/N) |
| LS-1000ML10 | LS-1000ML15 | LS-1000ML20 | LS-1000ML30 | |
|---|---|---|---|---|
| Max swing (mm) | 40.1 | 40.1 | 40.1 | 40.1 |
| Max turning diameter (mm) | 33.4 | 33.4 | 33.4 | 33.4 |
| Max tuning length (mm) | 38.1 | 57.8 | 77.4 | 116.7 |
| Bar capacity (mm) | 7.1 | 7.1 | 7.1 | 7.1 |
| Spindle speed (rpm) | 1200(1000) | 1200(1000) | 1200(1000) | 1200(1000) |
| Chuck size (inch) | 20"(24") | 20"(24") | 20"(24") | 20"(24") |
| Number of head stock | 1 | 1 | 1 | 1 |
| Number of tools | T12 | T12 | T12 | T12 |
| Milling turret (Y/N) | Y | Y | Y | Y |
| Y axis (Y/N) |
| LS-1000ML10 | LS-1000ML15 | LS-1000ML20 | LS-1000ML30 | |
|---|---|---|---|---|
| Max swing (mm) | 1020 | 1020 | 1020 | 1020 |
| Max turning diameter (mm) | 850 | 850 | 850 | 850 |
| Max tuning length (mm) | 970 | 1470 | 1970 | 2970 |
| Bar capacity (mm) | 180 | 180 | 180 | 180 |
| Spindle speed (rpm) | 1200(1000) | 1200(1000) | 1200(1000) | 1200(1000) |
| Chuck size (inch) | 20"(24") | 20"(24") | 20"(24") | 20"(24") |
| Number of head stock | 1 | 1 | 1 | 1 |
| Number of tools | T12 | T12 | T12 | T12 |
| Milling turret (Y/N) | Y | Y | Y | Y |
| Y axis (Y/N) |
